Comparing Components

The Compare Component tool allows you to quickly detect differences between certain tables in different Tidal databases.

Access the Compare Components tool from the Compare Components menu action.

The Compare Component control has two tabs: Compare Components and Compare Results. The default tab displayed is Compare Components.

The Compare Components Tab

The Compare Components tab displays two DB selectors, side-by-side, designated DB A and DB B.

Note: The selected DBs must belong to the same Tidal instance. Alternatively, they may belong to the same Tidal environment if the ‘AllowCompareWithinTidalEnvironment’ license feature is enabled. Comparison of DBs across Tidal environments is not supported.

Once DB A and DB B have been selected, click Compare to run the compare operation and open the Component Comparison Summary view.

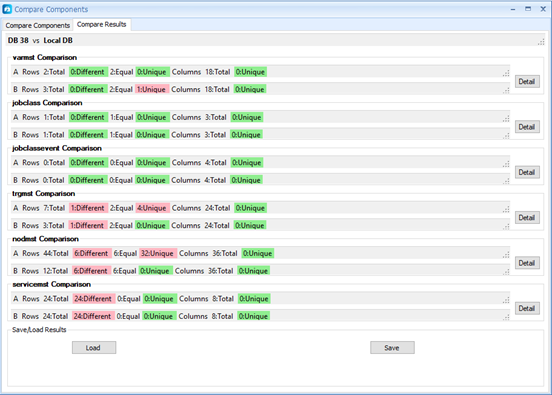

The Compare Component Result Tab

The Compare Result tab view presents a summary of the comparison results for various component data areas compared.

The view has seven sections top to bottom: six Data Comparison Summary areas and a Save/Load result area.

Data Summary Areas

The data summary areas are:

  • varmst Comparison

    The varmst area summarizes the comparison result of varmst tables in the DBs.

    Each row that is compared represents a separate variable definition in the varmst table.

    For varmst comparison, the variables are matched on variable name.

  • jobclass Comparison

    The jobclass area summarizes the comparison results jobcls tables in the DBs.

    Each row compared represents a separate variable definition in the jobcls table.

    For jobclass comparison the variables are matched on class name.

  • jobclassevent Comparison

    The jobclassevent area summarizes the comparison results based on the jobcls, trgjobcls and trgmst tables in the DBs.

  • trgmst Comparison

    The trgmst area summarizes the comparison results based on the trgmst tables in the DBs.

  • nodmst Comparison

    The nodmst area summarizes the comparison results based on the nodmst tables in the DBs.

  • servicemst Comparison

    The servicemst area summarizes the comparison results based on the servicemst tables in the DBs.

Each data comparison summary section contains a summary of the comparison result relating to the data for A and B respectively.

For A and B:

  • Total no of rows compared.

  • Number of rows with differences.

  • Number of unique rows.

  • Total no of columns compared.

  • Number of unique columns found.

Save and Load Compare Results

The results of the component comparison can be saved to a [.EXCC] file using Save. These can be reloaded from the file at a later time using Load or Load Saved Results on the Compare. Component tab.

Viewing Details of the Comparison Results

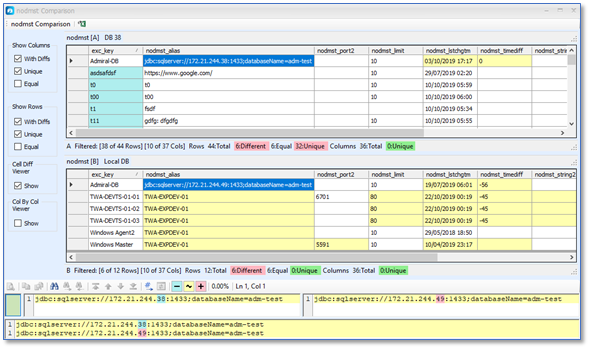

Click Detail in any of the summary areas to open a Detail Comparison view for the respective data area. The diagram shows an example for the nodmst area:
